Explore the horizontal lifeline as a complete arrangement, from the end brackets to the glider.

Explore the system Download system guide (PDF)

Horizontal lifeline systemsProduct visualization

Span range
3–15 m
Lifeline rope diameter
8 mm
Lifeline rope construction
7 × 19

01 / SYSTEM LAYOUTS

Straight or turning. One coordinated line.

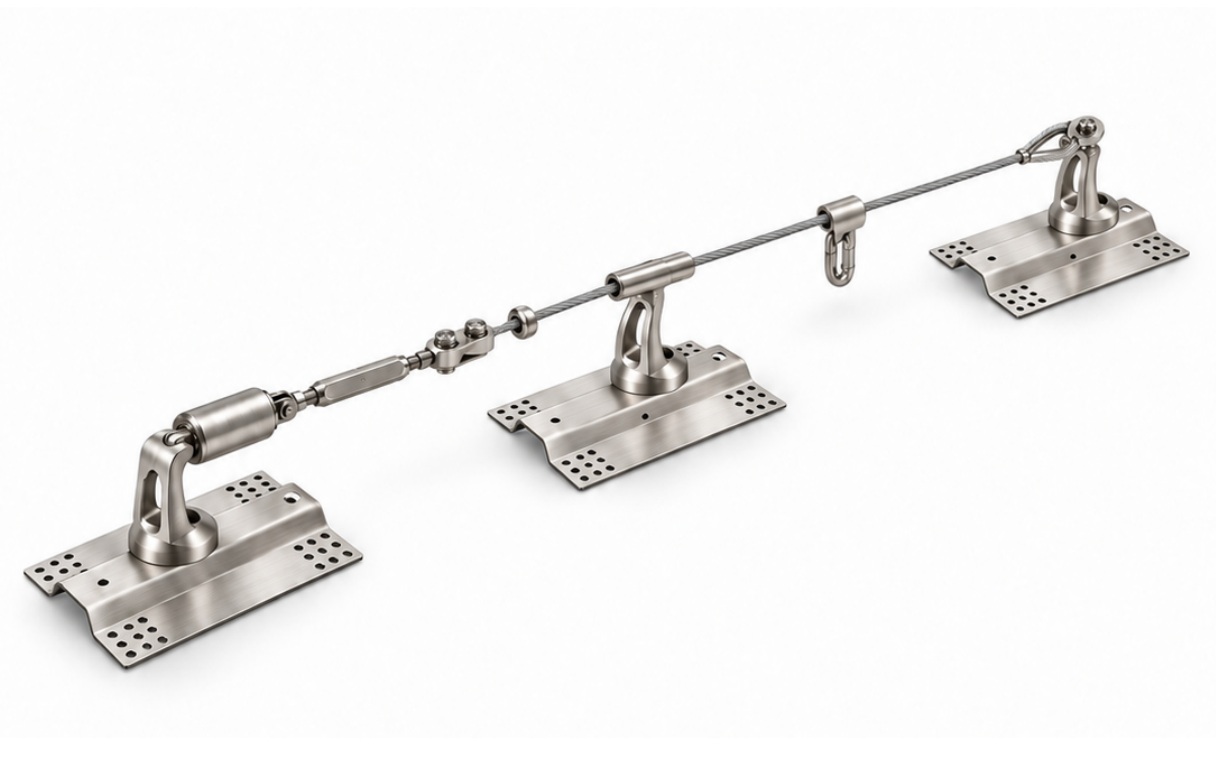

Straight system

End and intermediate brackets form the straight layout shown.

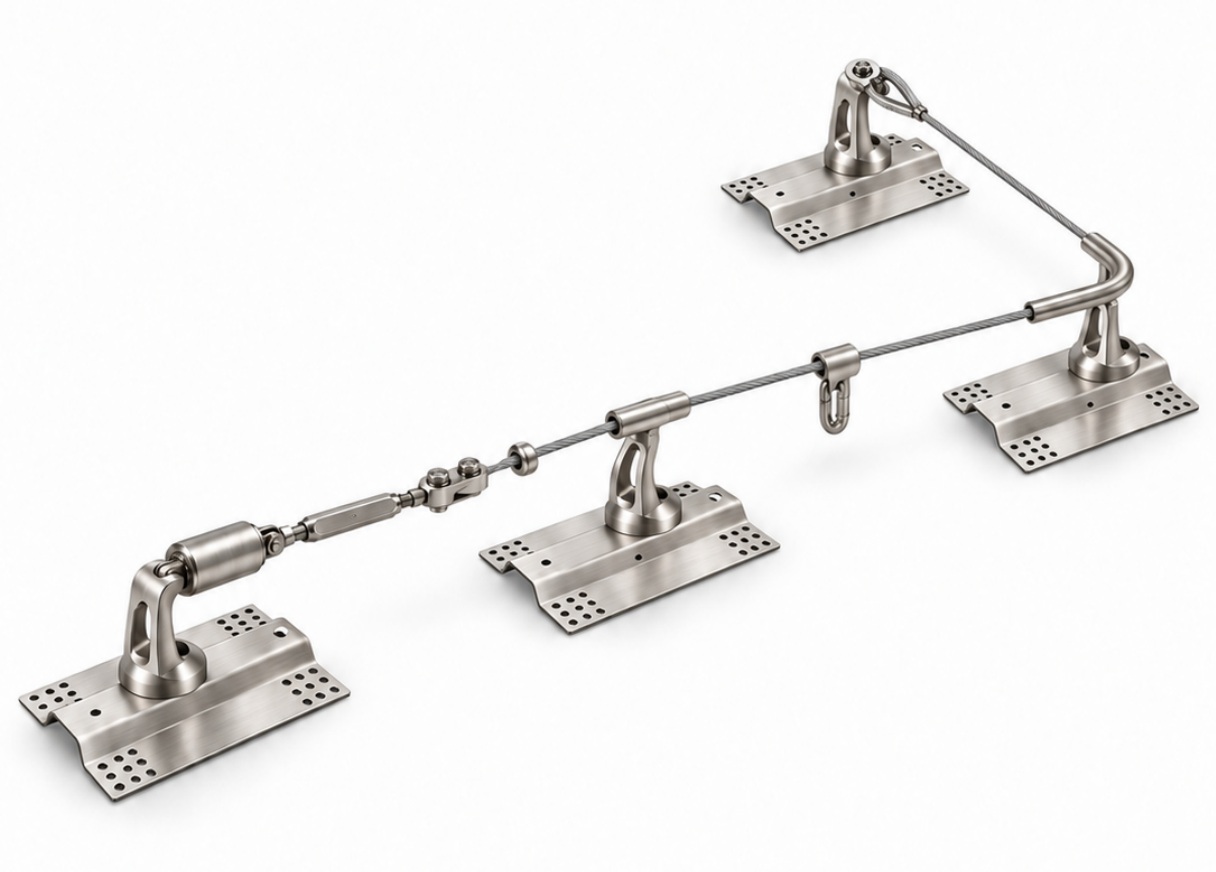

Turn system

A turn bracket guides the cable around the illustrated change of direction.

The 3–15 m value is the span range, not the total system length.

02 / CORE COMPONENTS

Twelve components. A connected arrangement.

Part references identify the components in the system guide.

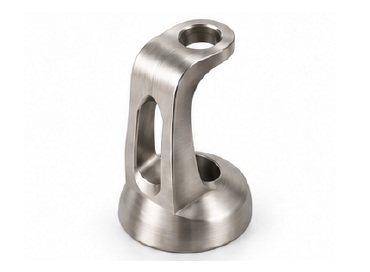

Terminal bracket

Component referenceL5FL12

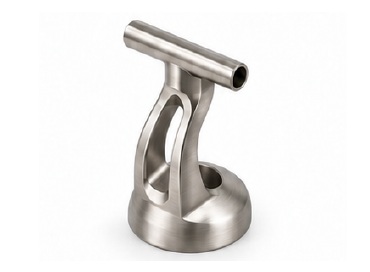

Intermediate bracket

Component referenceL5FL30

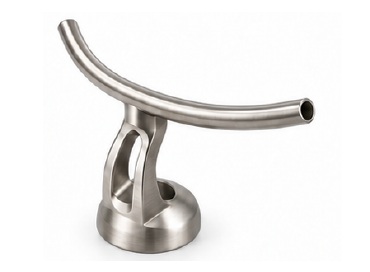

Turn bracket

Component referenceL9FL31

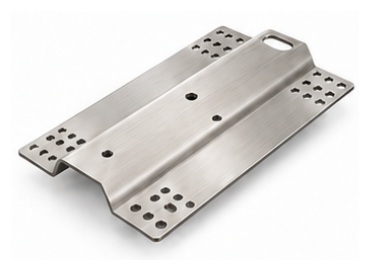

Base plate

Component referenceL9FL17

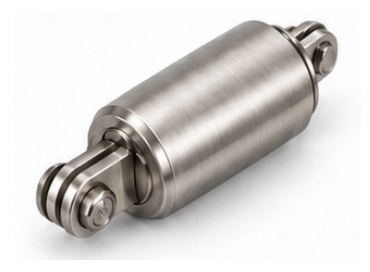

Energy absorber

Component referenceL5FL29H

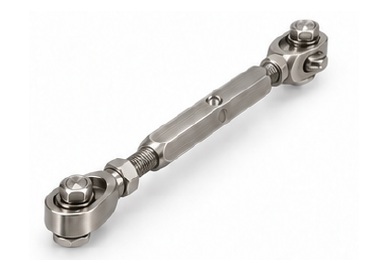

Jaw-jaw turnbuckle

Component referenceL6FL09

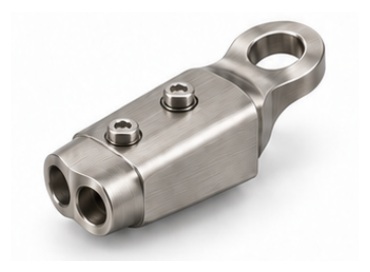

Integrated clamp

Component referenceL9FL23

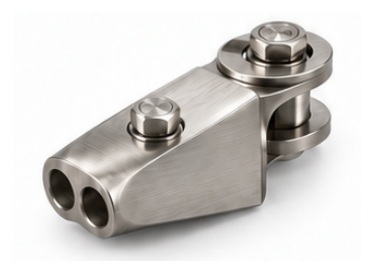

Thimble clamp

Component referenceL9FL24

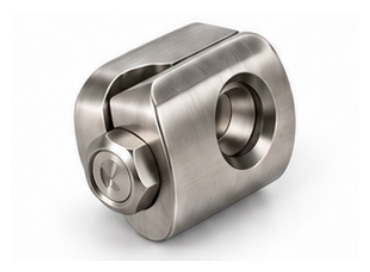

Glider stopper

Component referenceL9FL25

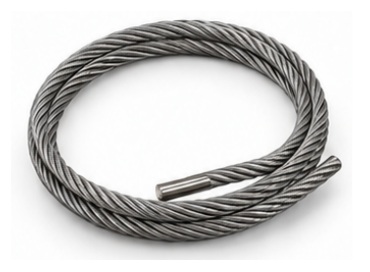

Lifeline wire rope

Component referenceL5FL04

8 mm · 7 × 19

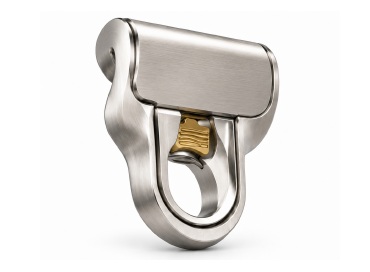

Glider

Component referenceL5FL20

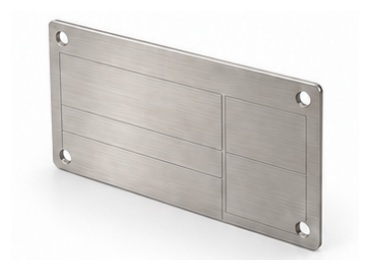

System information plate

Component referenceL5FL25

03 / OPTIONAL COMPONENTS

Additional connection and mounting choices.

The guide states that these optional components have not been tested and validated by QUINTIN CERTIFICATION. Confirm the applicable configuration and validation documentation before selection.

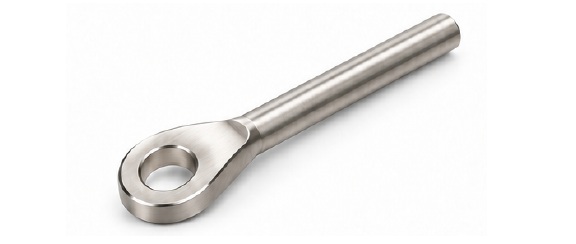

Crimping termination

Component referenceL5FL15

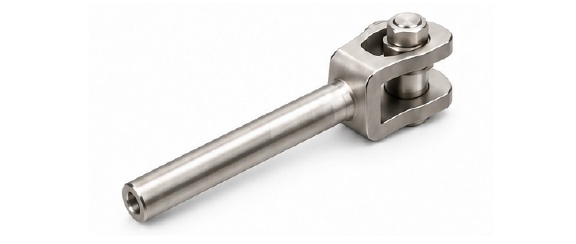

Swaged termination

Component referenceL5FL18

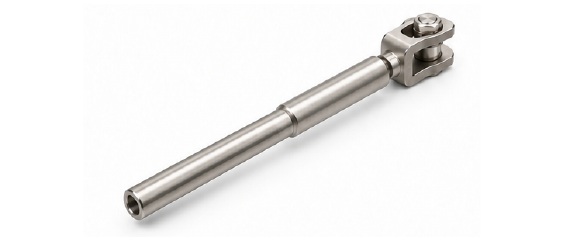

Swaged fork terminal

Component referenceL6FL10

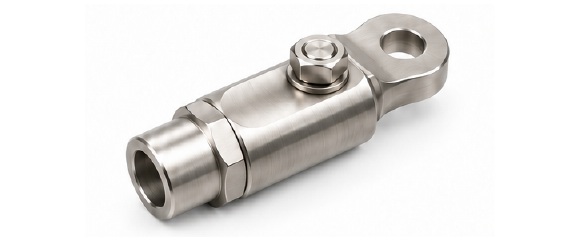

Cable clamp

Component referenceL5FL32

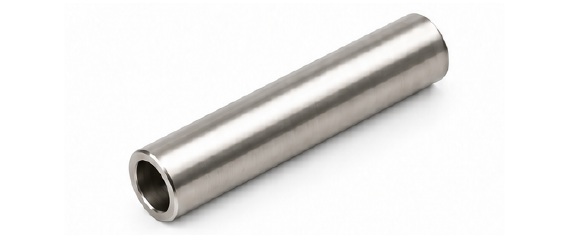

Wire rope connector

Component referenceL5FL24

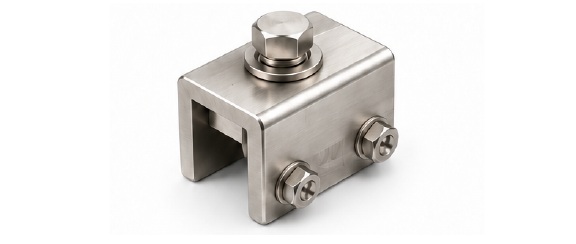

Standing seam clamp

Component referenceL7UF5

Klip-lok clamp

Component referenceL7UFS

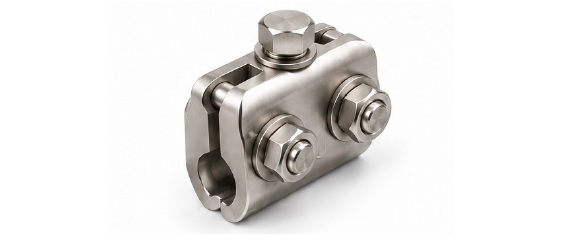

Standing seam clamp

Component referenceL7BA26

04 / ROOF MOUNTINGS

Four illustrated base-plate arrangements.

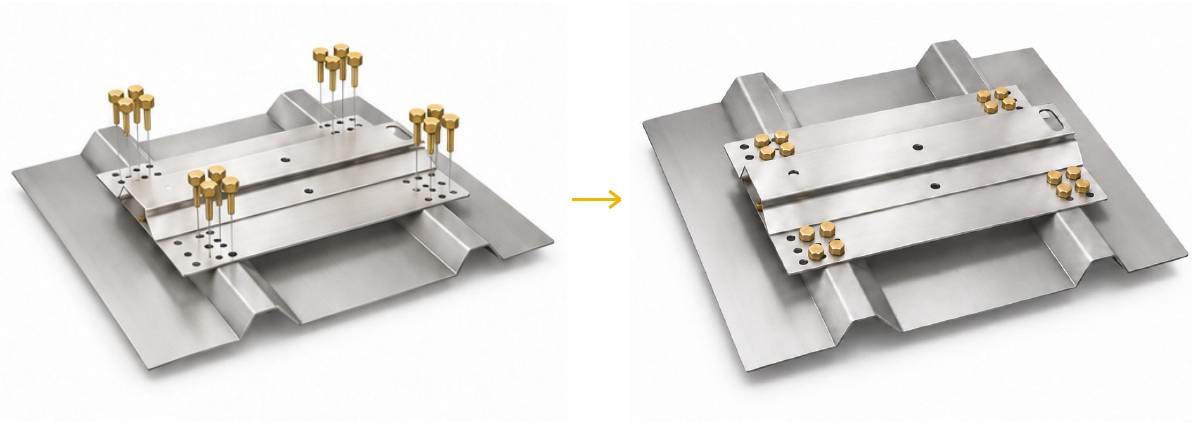

Screw fixing

×16

Sixteen screws in the illustrated base-plate arrangement.

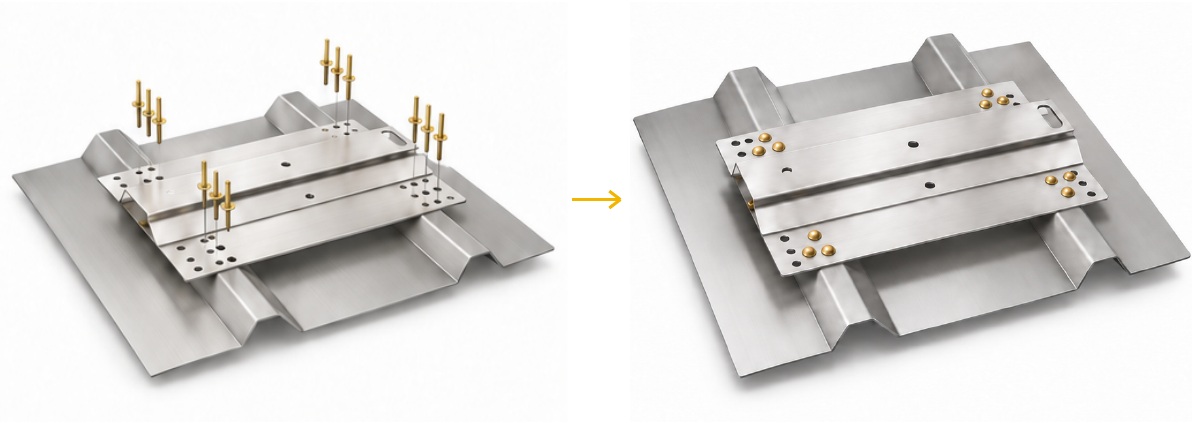

Rivet fixing

×12

Twelve rivets in the illustrated base-plate arrangement.

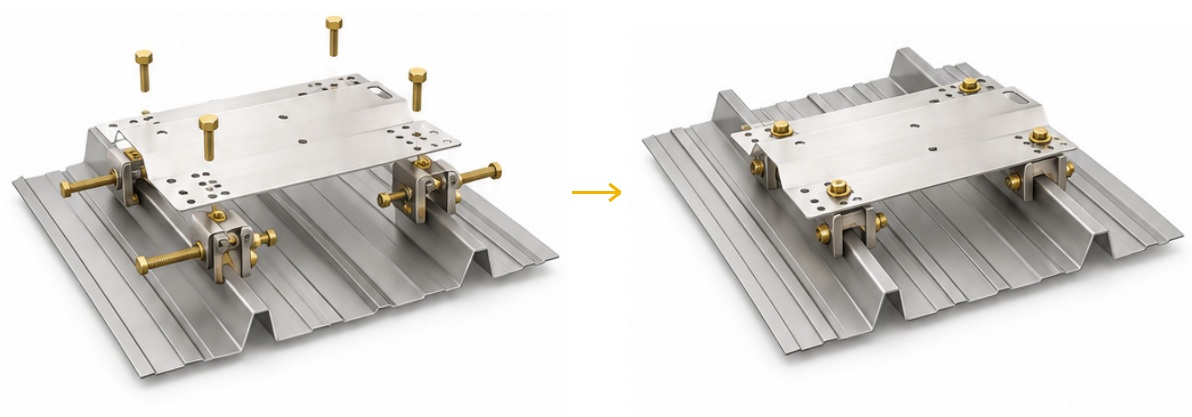

Standing seam mounting

×4

Four clamps in the illustrated standing-seam arrangement.

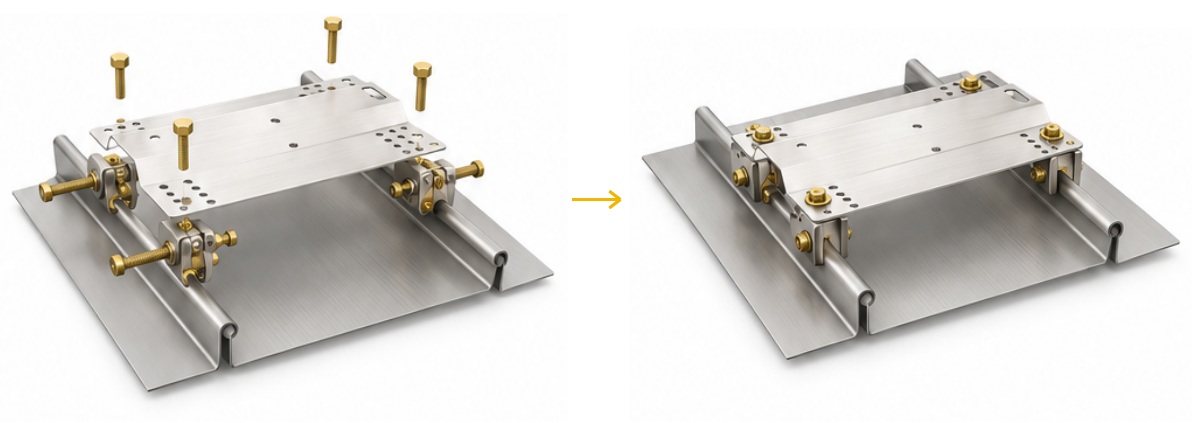

Klip-lok mounting

×4

Four clamps in the illustrated Klip-lok arrangement.

Fixing quantities apply only to the illustrated L9FL17 arrangements. Confirm the roof profile, supporting structure, fixings and project design for the installation.

05 / CONNECTIONS & CHECKS

Connection details, clearly illustrated.

Open a topic to view its component drawings and sequence.

These illustrations summarize the system guide. Installation and commissioning follow the applicable technical instructions and project design.

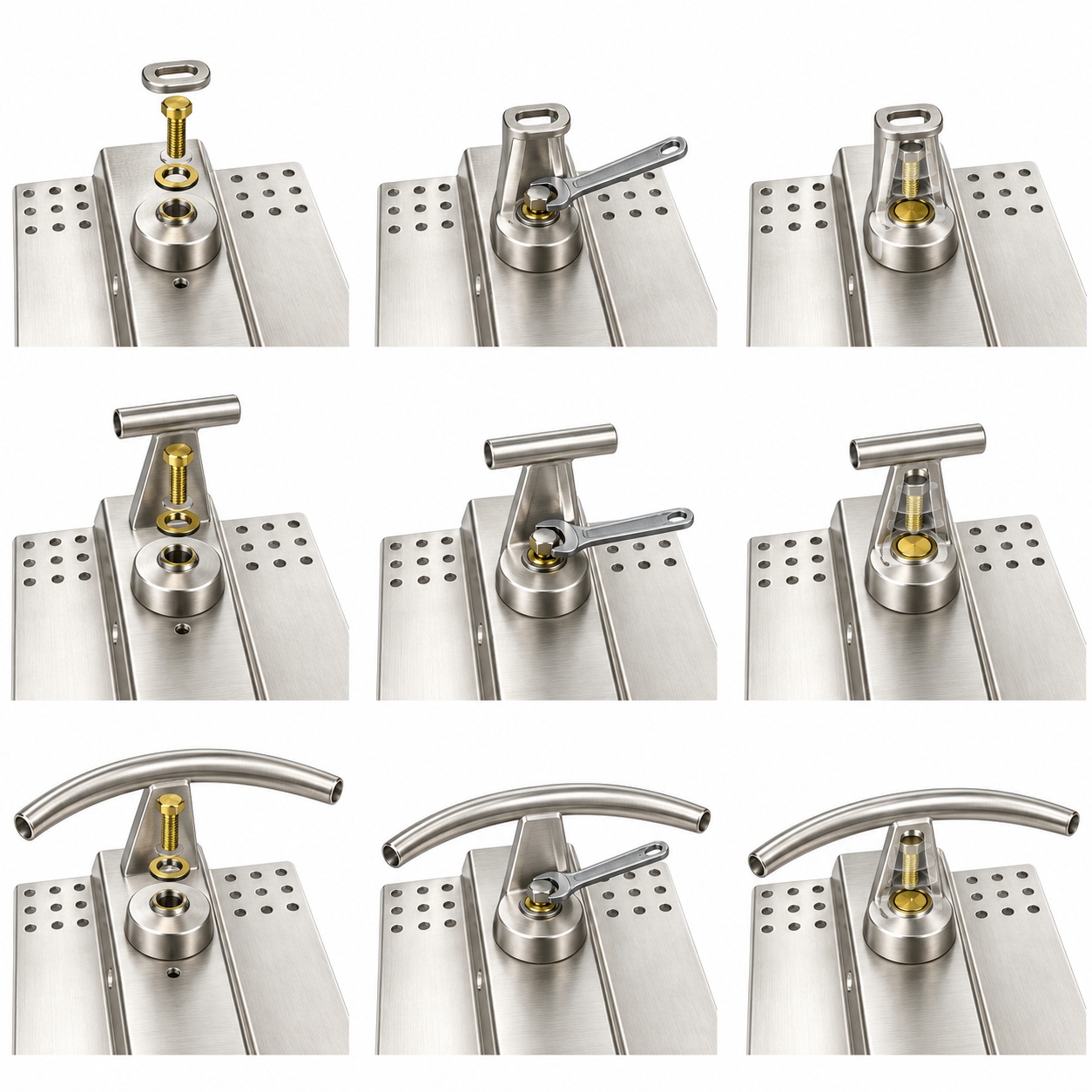

01Bracket installationL5FL12 · L5FL30 · L9FL31
  1. Position the bracket on the base plate.
  2. Tighten the bracket fixing.
  3. Check the installed bracket.

Bracket tightening torque40 N·m

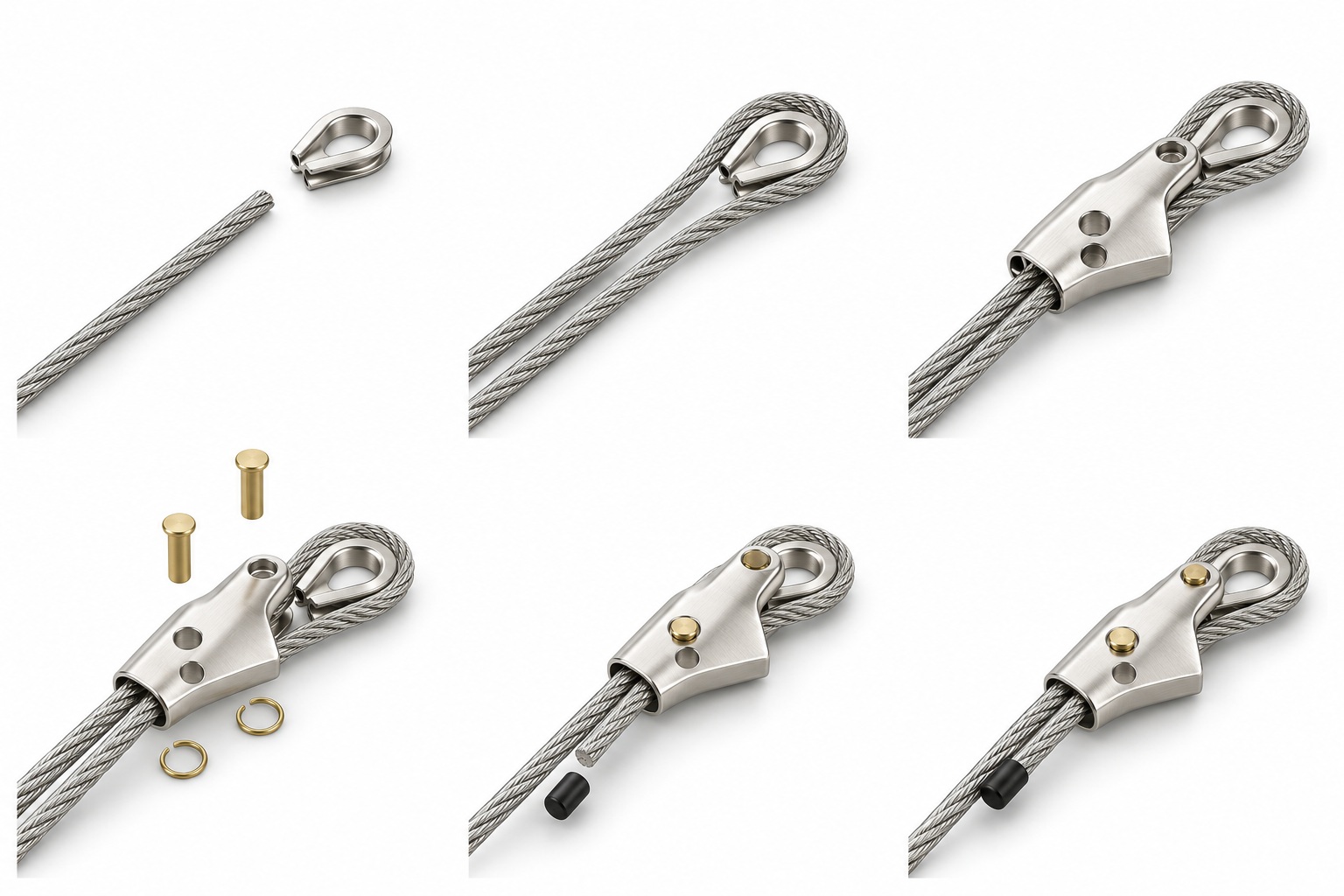

02Thimble-clamp terminationL9FL24
  1. Prepare cable and thimble.
  2. Form the cable eye.
  3. Position the clamp housing.
  4. Fit pins and retaining rings.
  5. Position the cable end cap.
  6. Complete the termination.

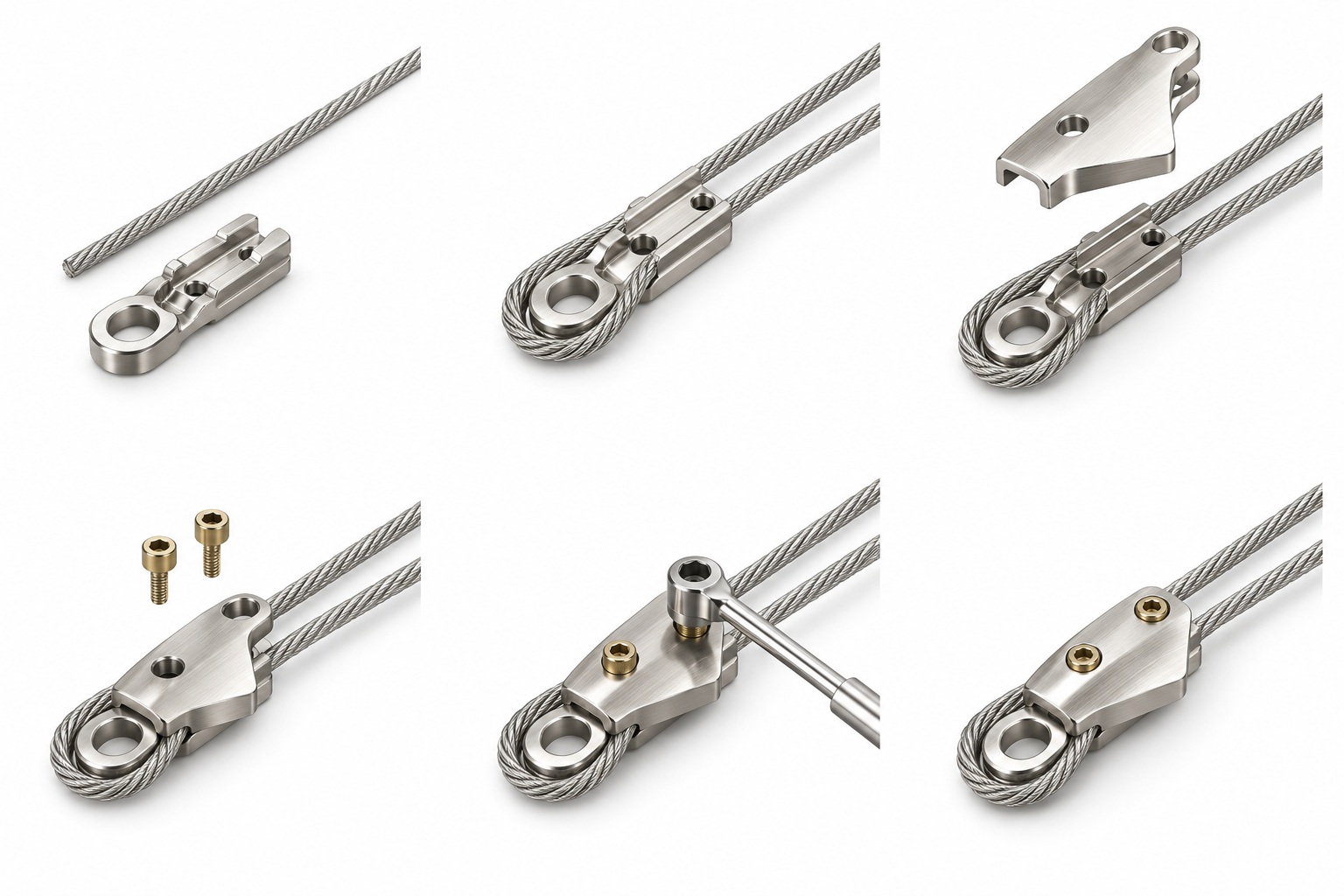

03Integrated-clamp terminationL9FL23
  1. Prepare the lower clamp.
  2. Route cable around the eye.
  3. Position the cover.
  4. Insert both fixing screws.
  5. Tighten both screws.
  6. Complete the termination.

Clamp tightening torque15 N·m

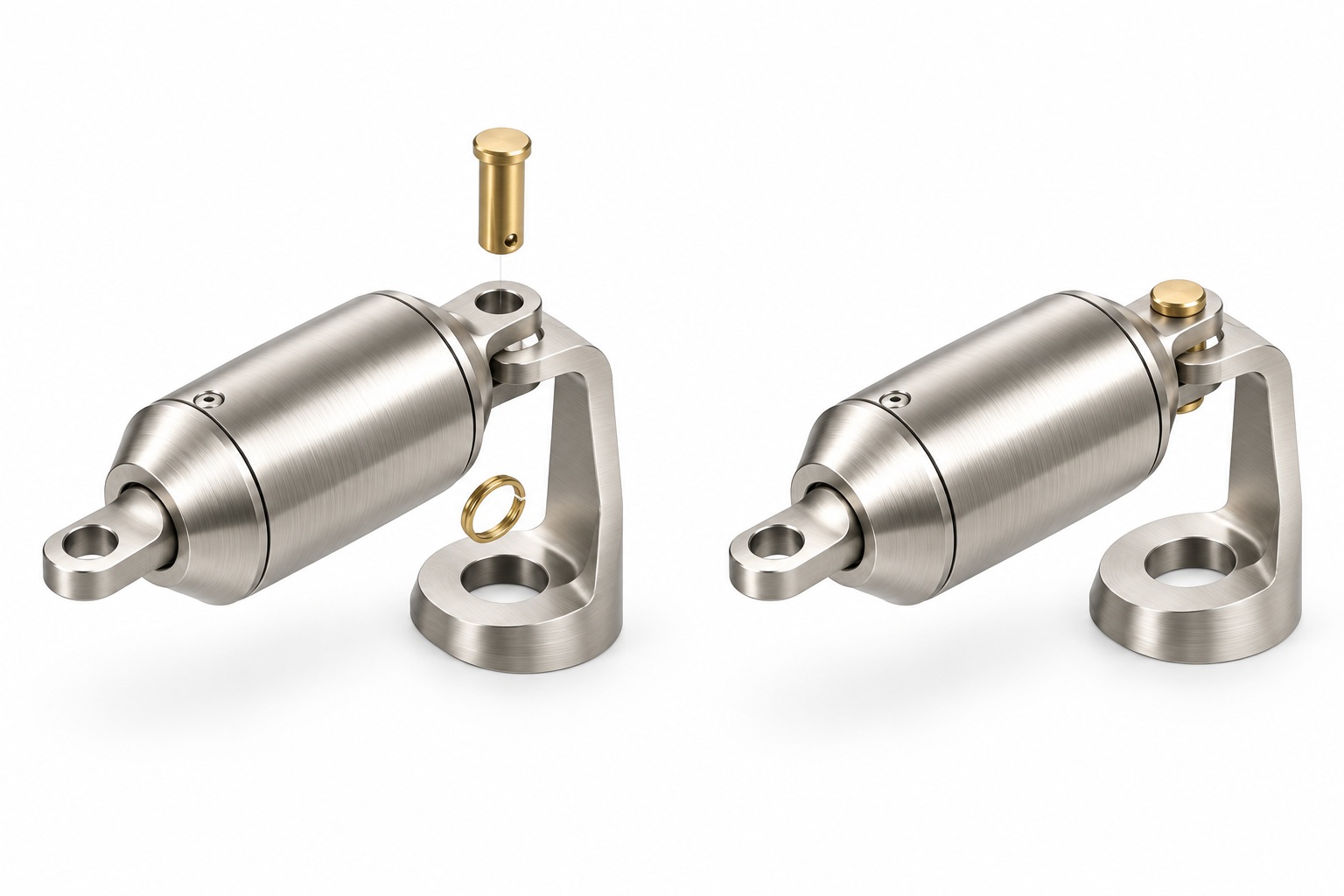

04Absorber connectionL5FL29H
  1. Align the pin through the absorber fork and terminal bracket.
  2. Fit the retaining ring and complete the connection.

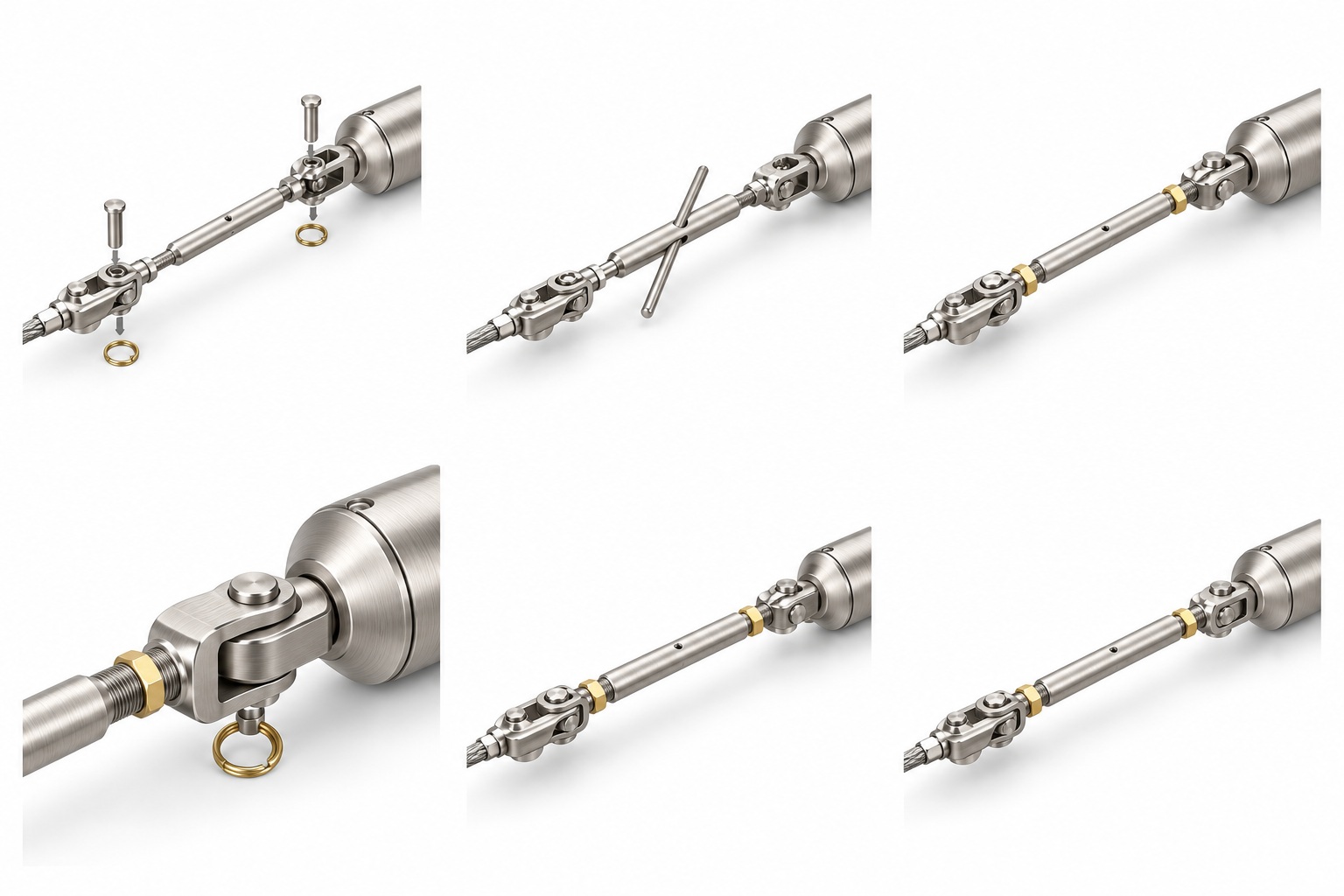

05Turnbuckle tensioningL6FL09
  1. Fit the pins and retaining rings.
  2. Adjust the turnbuckle body.
  3. Check threaded connections.
  4. Check the preload.
  5. Secure the locknuts.
  6. Complete the assembly.

Turnbuckle preload< 1 kN

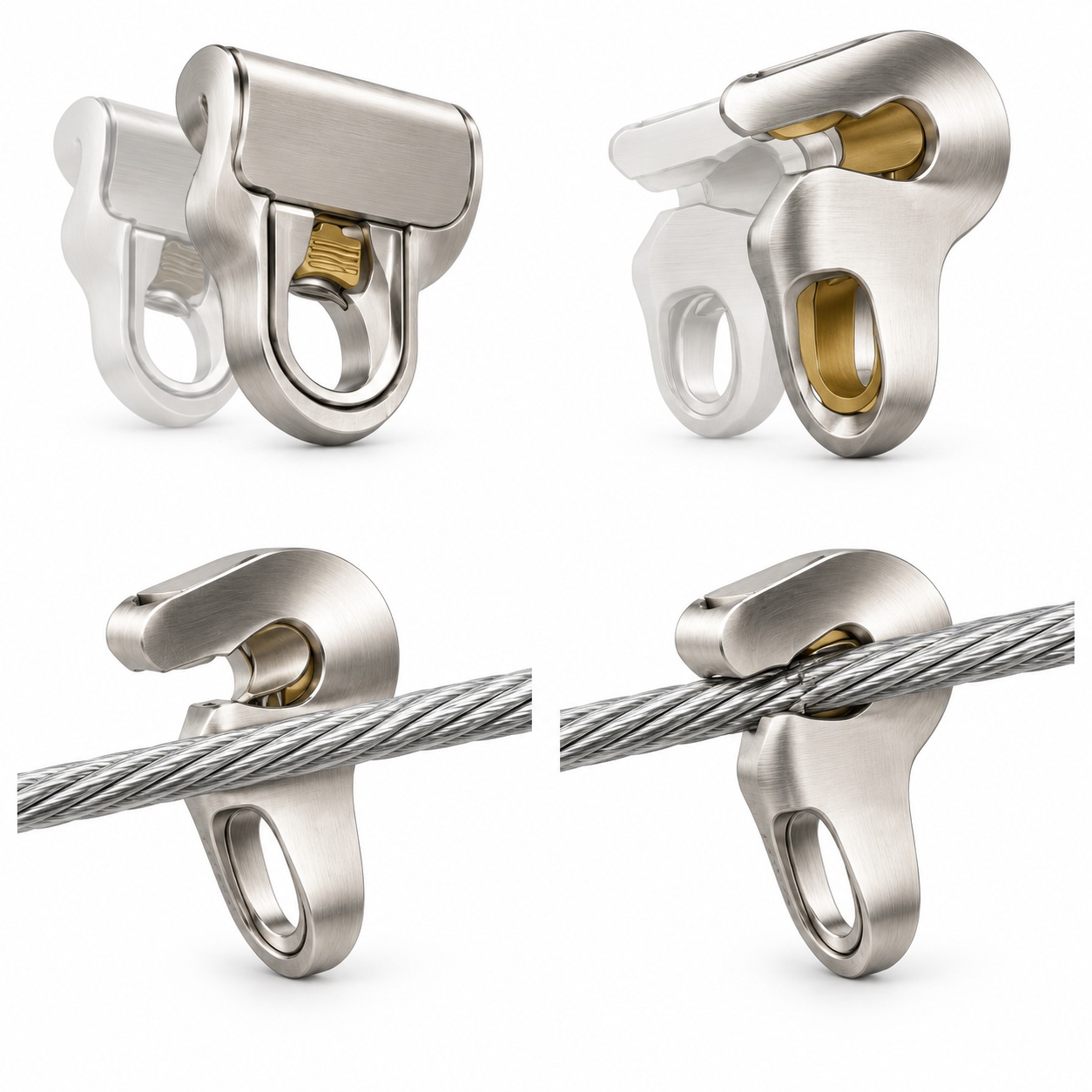

06Glider engagementL5FL20
  1. Press down.
  2. Push up.
  3. Position the cable.
  4. Engage the cable.

Check the cable profile.

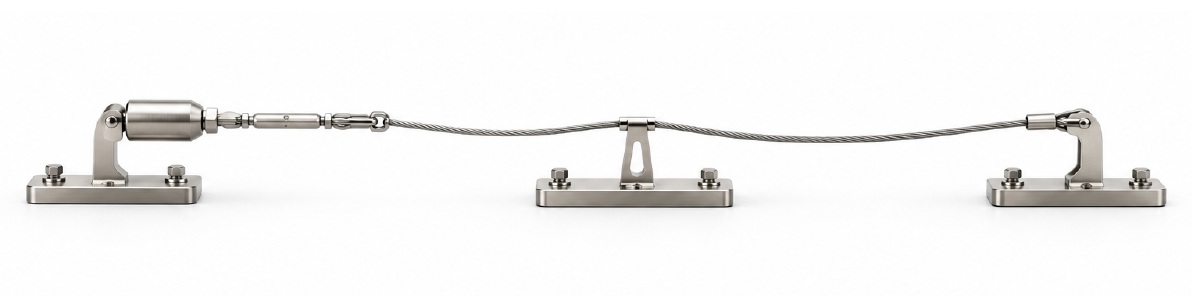

Illustrated cable sag

Visible sag between supports, as shown in the guide.

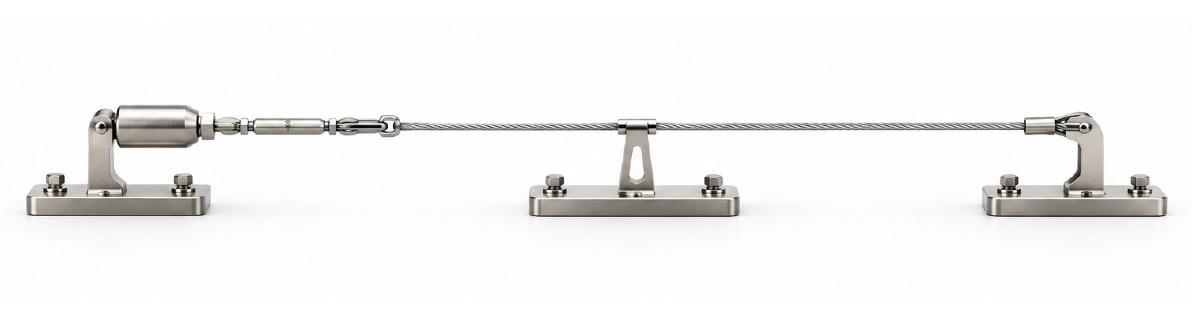

Over-taut cable

Do not reproduce the over-taut profile illustrated here.

The illustrated check accompanies the turnbuckle preload of less than 1 kN.

06 / SYSTEM PARAMETERS

Key values for the illustrated system.

Span range
3–15 m
Lifeline rope diameter
8 mm
Lifeline rope construction
7 × 19
System reference
L9
Layout
Straight and turning layouts

Bracket tightening torque40 N·m

L5FL12 / L5FL30 / L9FL31

Clamp tightening torque15 N·m

L9FL23 integrated clamp

Turnbuckle preload< 1 kN

L6FL09 turnbuckle

The 3–15 m value is the span range, not the total system length.

The guide does not state the maximum number of users, anchor load or required fall clearance. Confirm these against the project design and applicable technical documentation.
