CM120 tower climbing machine
Battery-powered single-person climbing access with an integrated carrier, drive and vertical guidance system.

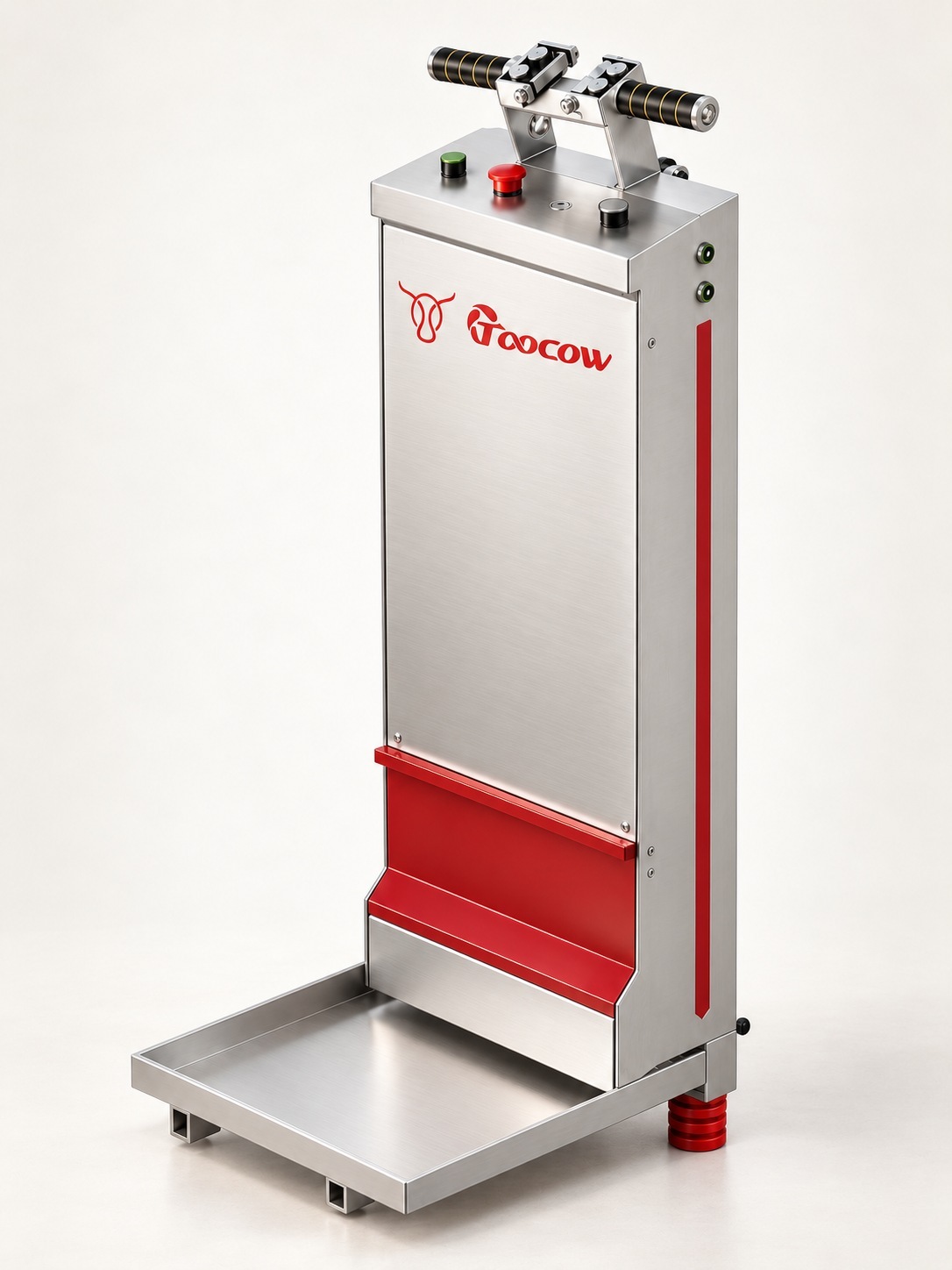

Overall view
Product configuration
Technical overview
- Rated load
- 120 kg
- Climbing speed
- 18 m/min
- Model
- CM120
- Motor power
- 1.5 kW
- Power source
- Battery powered
- Charging supply
- Single-phase 220 V, 50 Hz
- Protection class
- IP54
- Corrosion category
- C4-L
- Working temperature
- -20°C to +55°C
- Product weight
- 70 kg
- Overall dimensions (L × W × H)
- 400 × 650 × 1350 mm
- Continuous-operation height¹
- ≤1500 m
- Design life
- 10 years
- Noise
- ≤79 dB(A)
- Wind speed
- ≤13 m/s (6 Beaufort)
- Relative humidity
- <95%
- Insulation class
- F
- Rated capacity
- 1 person
Configuration and application
- Carrier unit: Carrier for the operator and accompanying items.

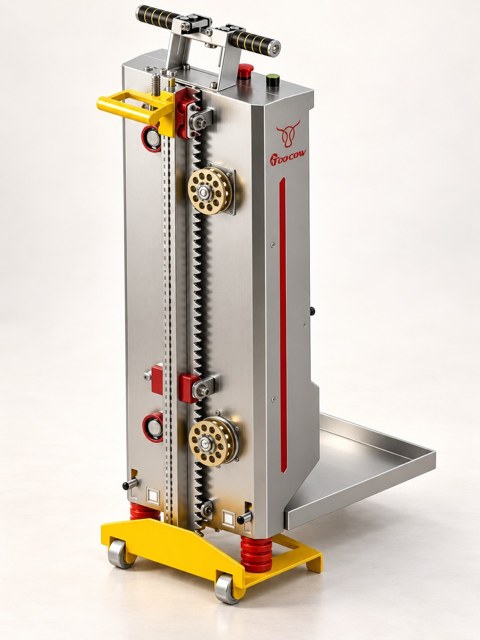

- Guidance system: Guidance along the vertical rail.
- Integrated drive unit: Drive assembly integrated with the machine body.
- Travel limit switch: Limit-switch arrangement for upper and lower travel.
- Bottom buffer: Buffer components located at the machine base.
Specifications vary by model and configuration. Include your intended use and destination when enquiring.
